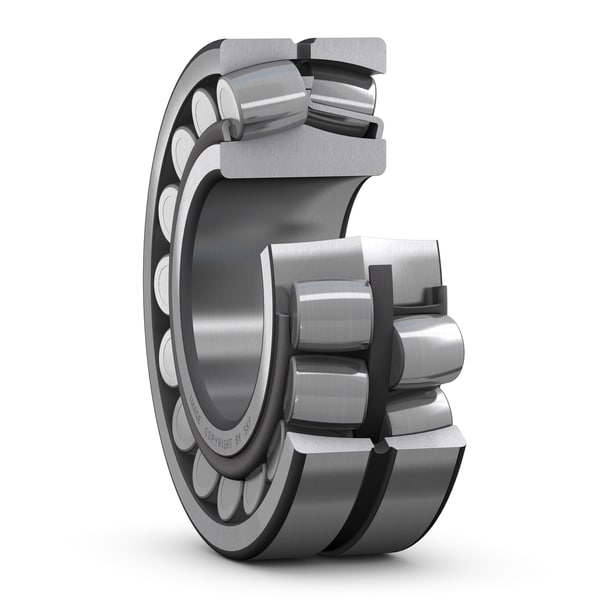

ตลับลูกปืน SKF 22226 EK

d

130 mm

Bore diameter

D

230 mm

Outside diameter

B

64 mm

Width

d₂

≈ 152 mm

Shoulder diameter of inner ring

D₁

≈ 201 mm

Shoulder/recess diameter of outer ring

b

11.1 mm

Width of lubrication groove

K

6 mm

Diameter of lubrication hole

r_1,2

min.3 mm

Chamfer dimension
