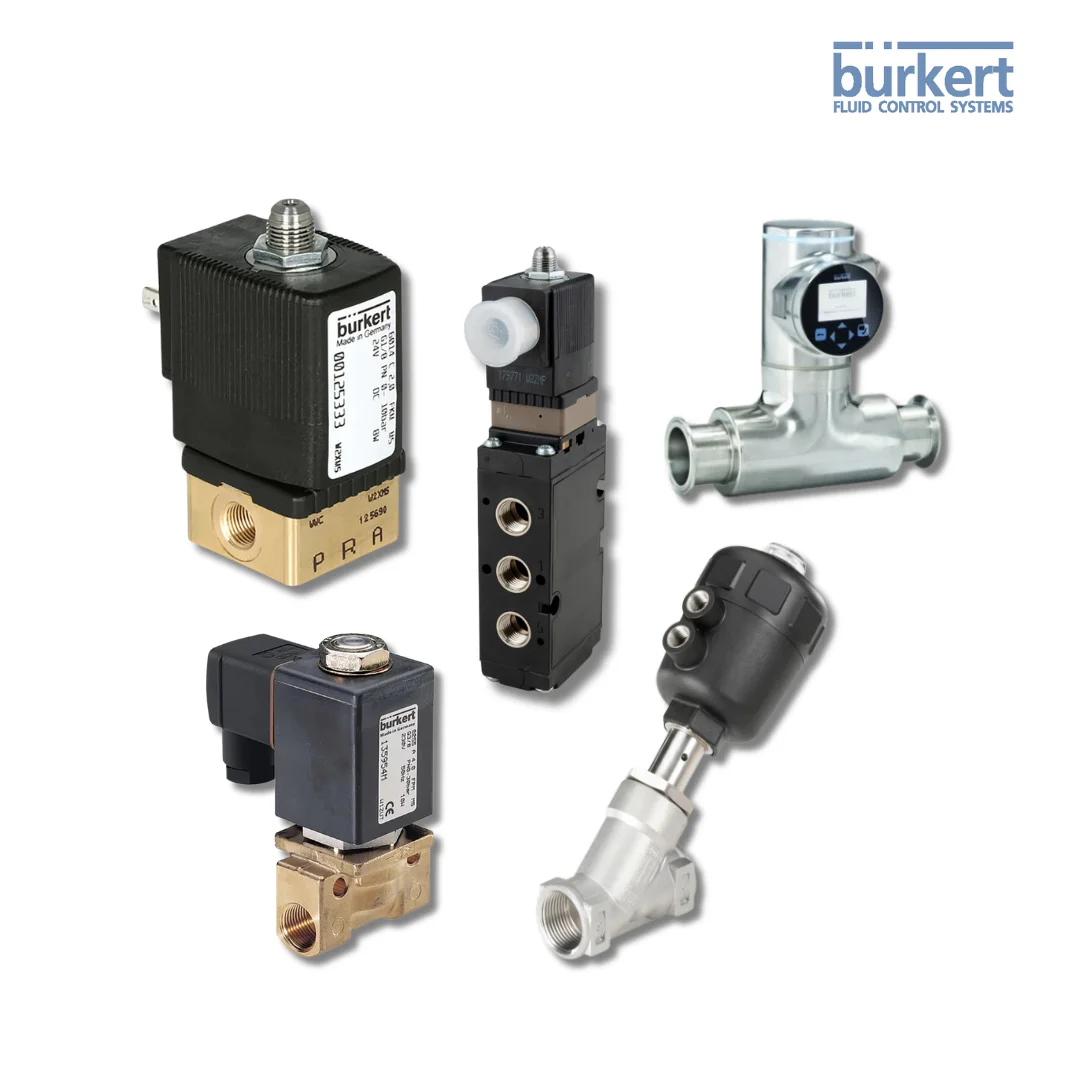

• Burkert Solenoid Valve 085599, 3 port(s) , NO/NC, 230 V ac, 1/4inRS Stock No.:468-162หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:085599
1 1

Burkert Solenoid Valve 085599, 3 port(s) , NO/NC, 230 V ac, 1/4inRS Stock No.:468-162หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:085599

Burkert Solenoid Valve 085599, 3 port(s) , NO/NC, 230 V ac, 1/4inRS Stock No.:468-162หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:085599

12,757.00 ฿
15,946.00 ฿ 12,757.00 ฿
ลดราคา ขายหมดแล้ว

Burkert

รายละเอียด Burkert Solenoid Valve 085599, 3 port(s) , NO/NC, 230 V ac, 1/4inRS Stock No.:468-162หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:085599

PP and PVDF, 2 and 3 way, Type 124

Solenoid valves with pivoted armatures.

Lockable manual over-ride
3-pin DIN connector rated to IP65 can be positioned through 360° in 90° increments
Duty cycle intermittent operation 40% 30 min
8W nominal coil power
Power consumption 30VA (in-rush), 15 VA/8W (hold) a.c, A 8W d.c.
Zero head pressure capability
Fluid temperature range: -30 → +80°C (EPDM), 0 → +80°C (FKM)
Suitable for: alkalis and acids to medium concentration; alkaline washing and bleaching agents
Note
BSP parallel ports suitable for use with RS stainless steel compression fittings
คุณสมบัติ Value
Supply Voltage 230 V ac
Number of Ports 3
Connection Size 1/4in
Connection 1/4 in G Female
Operation Direct
Default Valve Position NO/NC
Suitable Applications Aggressive Media
Type 3/2
Orifice Diameter 4mm
Series 0124
Body Material PVDF
Maximum Working Pressure 3 bar
Operating Temperature Range Maximum of +55 °C
Maximum Operating Temperature +55°C
Thread Standard or Connection Type G
Connection Gender Female
Maximum Closing Time 15ms
Flow Factor Kv 0.3m³/h
Maximum Opening Time 15ms
ดูรายละเอียดทั้งหมด
