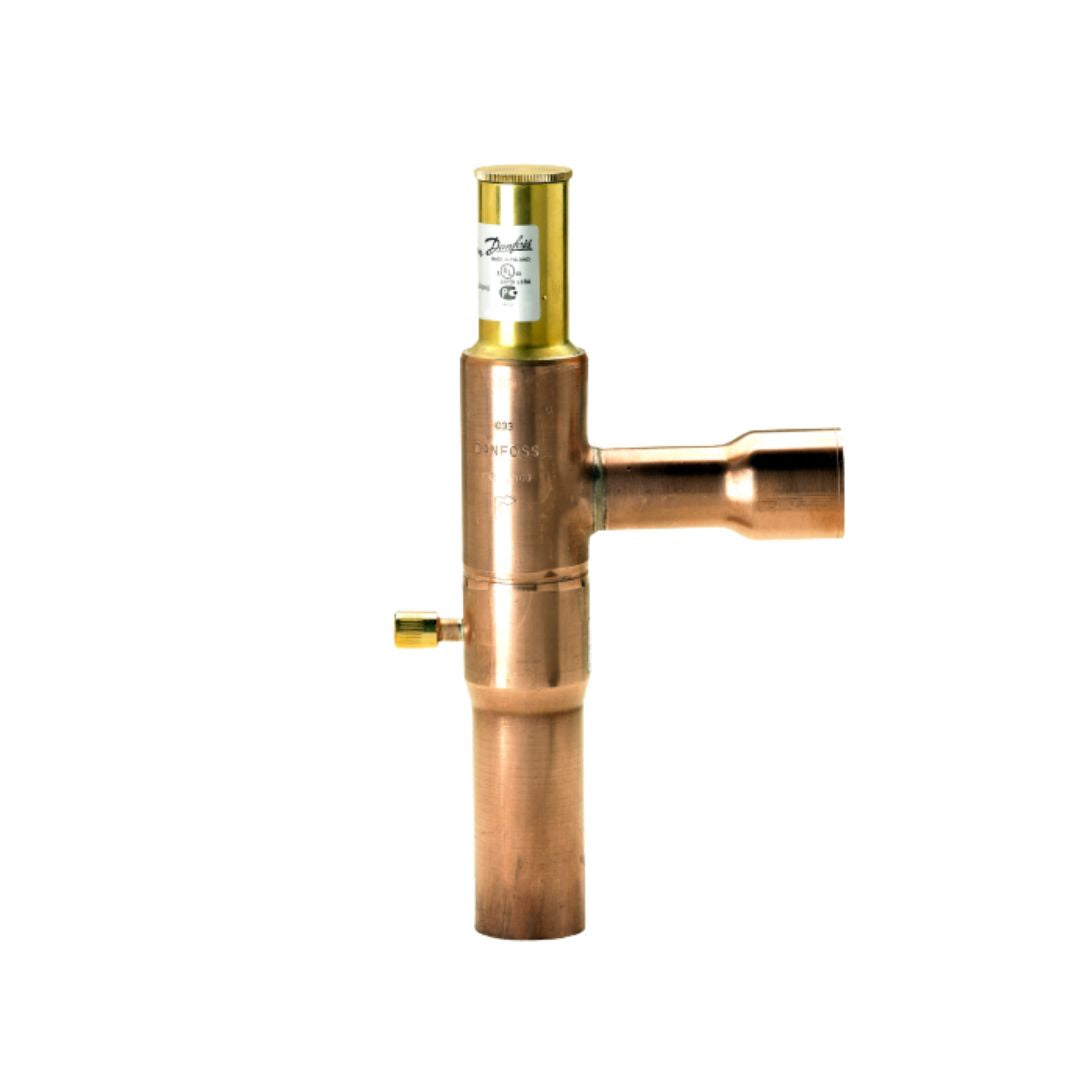

Crankcase Pressure Regulator Danfoss KVR 28 Connection 1 1/8 lnch Code 034L0095
Crankcase Pressure Regulator Danfoss KVR 28 Connection 1 1/8 lnch Code 034L0095
ราคาปกติ
27,442.27 ฿
ราคาปกติ
ราคาโปรโมชัน
27,442.27 ฿
ราคาต่อหน่วย
ต่อ
DANFOSS
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Crankcase Pressure Regulator Danfoss KVR 28 Connection 1 1/8 lnch Code 034L0095
Data Sheets :
Product details
| Gross weight | 1.09 Kg |
| Net weight | 0.923 Kg |
| Volume | 3.134 Liter |
| EAN | 5702428411608 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Equipment | Schrader valve access port |
| Factory setting [bar] | 10 bar |
| Factory setting [psig] | 145 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Identical product | 034L1295 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 1/8 in |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 1/8 in |
| P band max. [bar] | 5 bar |
| P band max. [psi] | 72.5 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Condensing pressure regulator |
| Quantity per packing format | 7 pc |
| Rated cap. conditions [IMP] | Delta p hotgas=6 psi Delta p liquid=3 psi tcond=110 °F tevap=40 °F |
| Rated cap. conditions [SI] | Delta p hotgas=0.4 bar tevap=-10 °C Delta p liquid=0.2 bar Offset=3 bar tcond=30 °C |
| Rated cap. R134a, Hot gas [kW] | 30.6 kW |
| Rated cap. R134a, Hot gas [TR] | 8.04 TR |
| Rated cap. R22, Hot gas [kW] | 34.9 kW |
| Rated cap. R22, Hot gas [TR] | 10.93 TR |
| Rated cap. R404A/R507A [kW] | 93.7 kW |
| Rated cap. R404A/R507A [TR] | 20.9 TR |
| Rated cap. R407C, Hot gas [kW] | 37.7 kW |
| Rated cap. R407C, Hot gas [TR] | 11.91 TR |
| Rated cap.R404A/R507,Hot gas[k | 34.9 kW |
| Rated cap.R404A/R507,Hot gas[T | 8.66 TR |
| Rated capacity R134a [kW] | 121 kW |
| Rated capacity R134a [TR] | 30.2 TR |
| Rated capacity R22 [kW] | 129 kW |
| Rated capacity R22 [TR] | 32.6 TR |
| Rated capacity R407C [kW] | 139.3 kW |
| Rated capacity R407C [TR] | 35.5 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R407H,R449B,R454C R455A,R515B,R516A,R454A |
| Regulation range [bar] [max] | 17.5 bar |
| Regulation range [bar] [min] | 5 bar |
| Regulation range [psig] Pe [max] | 254 psig |
| Regulation range [psig] Pe [min] | 73 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVR 28 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
