Product size
Product details
| Gross weight | 0.338 Kg |
| Net weight | 0.297 Kg |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -13 °F |
| Approval | BV,CCC,CE,CMIM,DNV,EAC
GL,LLC CDC EURO-TYSK,LR,LVD PED,PZH,RINA,RMRS,RoHS China,c UL us UL353,CS,C22.2 c UL us UL873, CS C22.2,UKCA |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Differential [bar] [Max] | 1.5 bar |
| Differential [bar] [Min] | 0.4 bar |
| Differential [psi] [Max] | 22 psi |
| Differential [psi] [Min] | 6 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV Insulation: 400V Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP44 |
| Enclosure rating Nema (~) | 2 |
| Fluid Group | 1 |
| Further information | Not applicable for liquid line |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 20 bar |
| Max. test pressure [psig] | 290 psig |
| Volume | 0.561 Liter |
| EAN | 5702422052548 |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Oil free refrigerants | R134a
R513A R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |

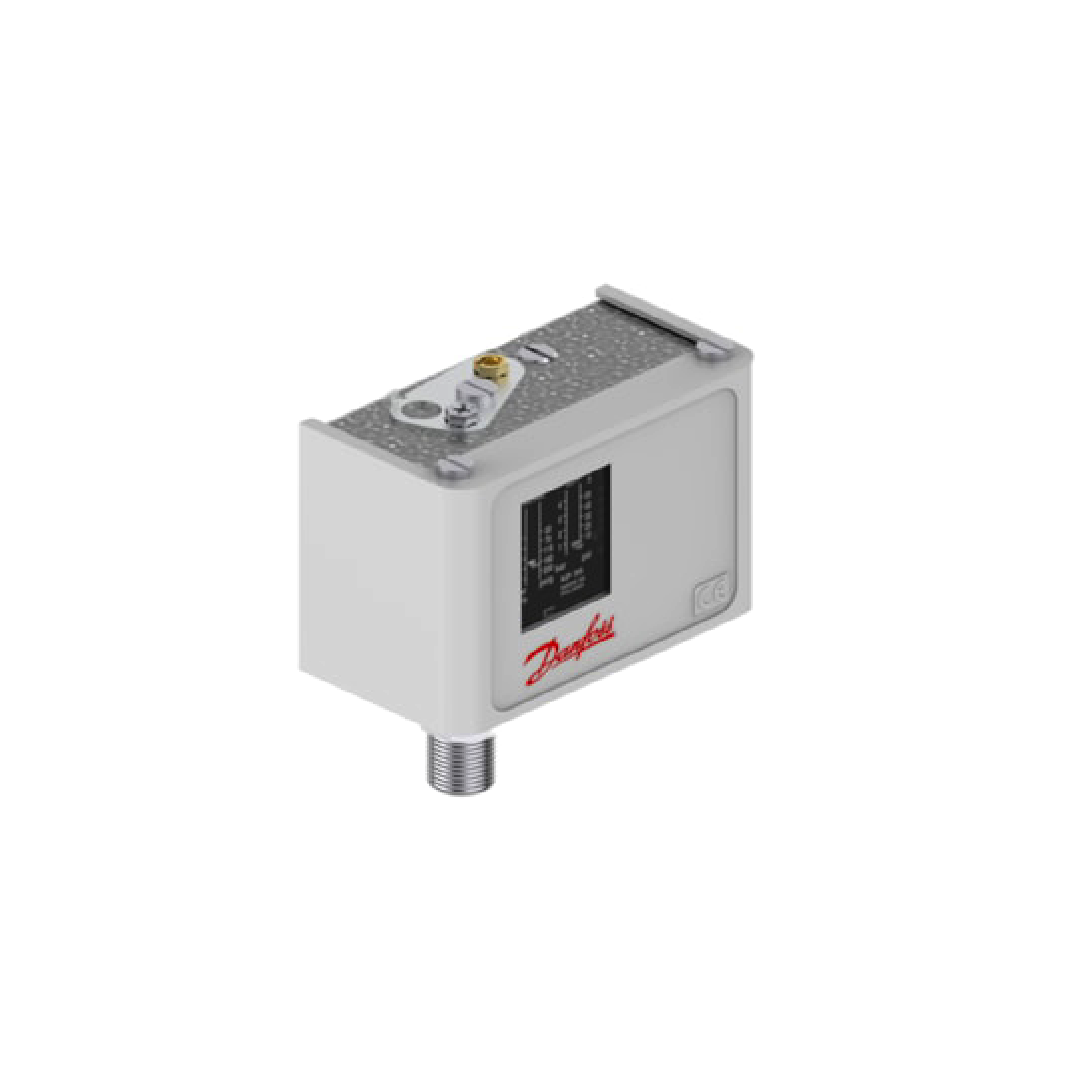

| Product description | Pressure switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances 0.1% | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113,R1234yf,R1234yz,R1234ze
R124,R134a,R22,R404A,R407A R407C,R407F,R407H,R422B R422D,R438A,R448A,R449A R449B,R450A,R452A,R454C R455A,R507A,R513A,R515B |
| Regulation range | 6 inHg - 73 psig |
| Regulation range [bar] Pe [Max] | 5 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Reset function | Auto |
| Serviceable | No |
| Type | KP2 |
| UL approved refrigerants | KP2 |
| UL approval file name | R113,R124,R134a,R22,R404A
R407A,R407C,R407F,R407H,R422B R422D,R438A,R448A,R449A,R449B R450A,R452A,R507A,R513A,R515B |
