MP 54, MP 55 installation dimensions (Imp. units)/MP dimensions, metric units

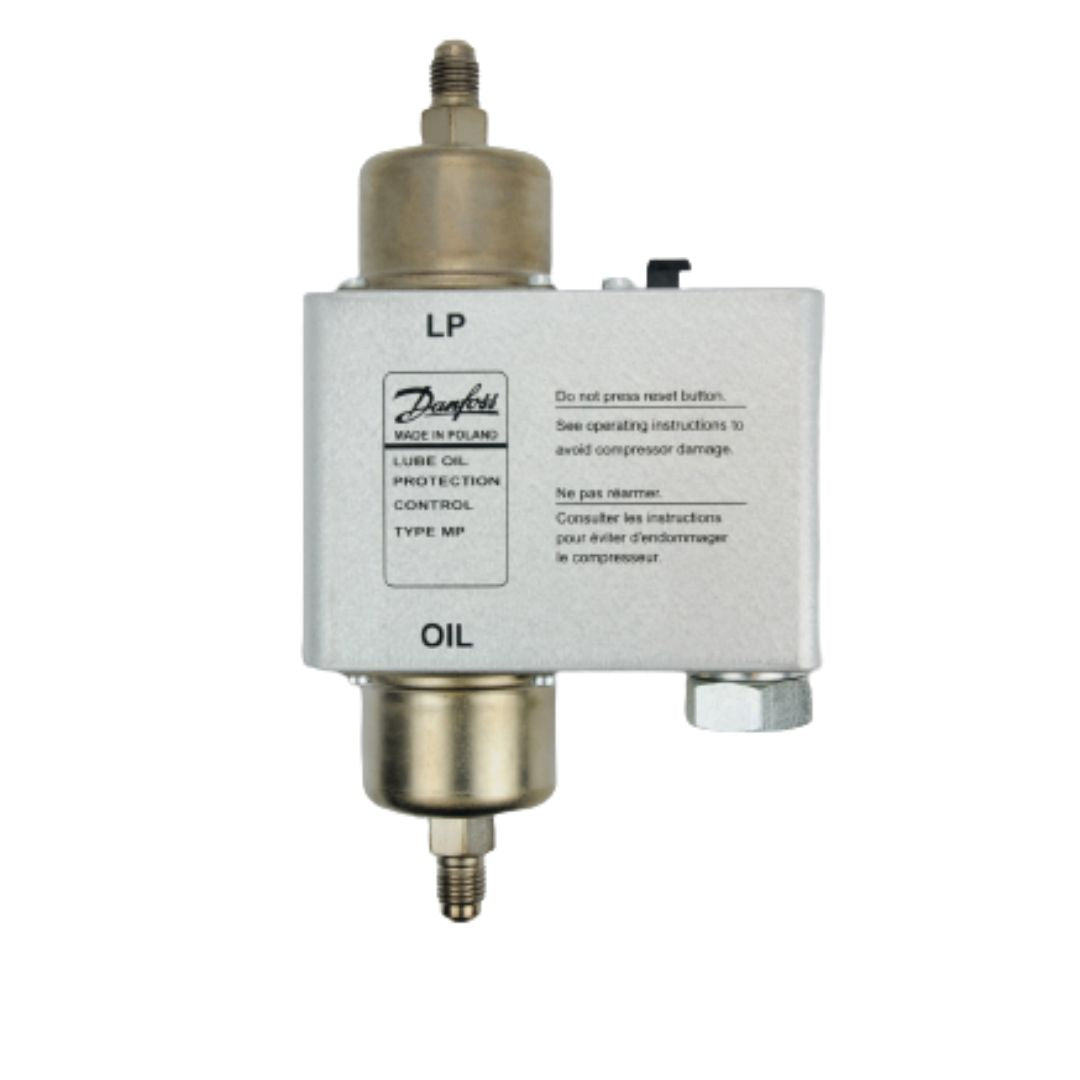

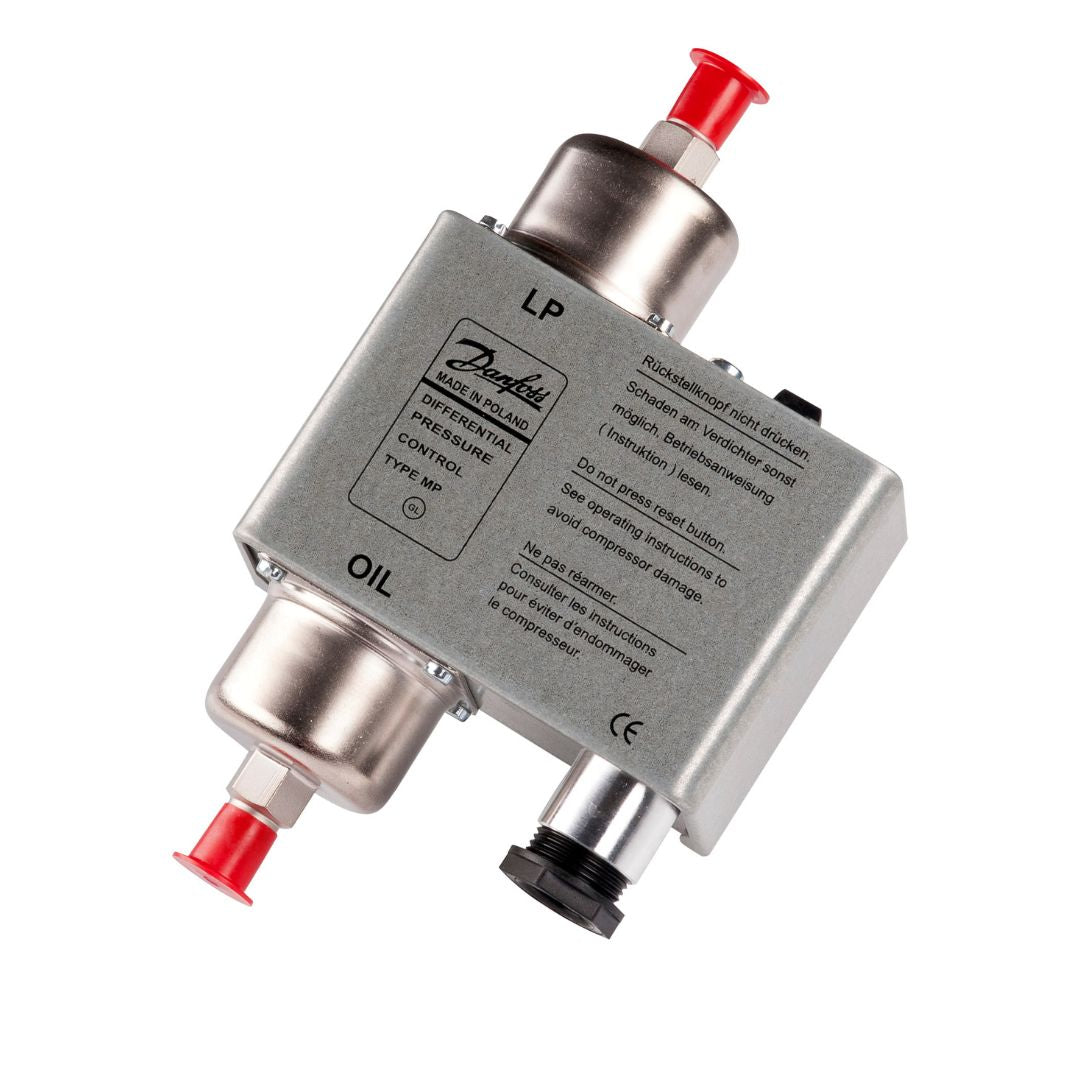

MP54 Diff. Pressure Control
Product details
Gross weight | 0.76 kg |
Net weight | 0.68 kg |
Adjustment | Cut out for falling pressure |
mb. Temp. Note | Bellows max 100 °C/212 °F |
Ambient temperature range [°C] [Max] | 60 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 140 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Ammonia application | No |
Approval | CCC,CE,DNV,EAC,GL,KR,LR, LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS,China TYSK,LLC, CDC, EURO-TYSK,UKCA |
Contact differential [bar] | 0.2 bar |
Contact function | SPDT |
Contact rating | AC15=2 A, 250 V
DC13=0.2 A, 250 V |
Electrical conn. Male/Female | Female |
Electrical connection | Screwed cable entry |
Electrical connection size | Pg 13.5 |
Electrical connection standard | DIN 40430 |
Electrical spec. standard | EN 60947-5 |
EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A |
EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2
Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2 |
Enclosure rating IP | IP20 |
Equipment | Thermal time relay |
Fixed Differential [bar] | 0.65 bar |
Fixed Differential [psi] | 9 psi |
Identical product | 060B100966 |
Max. test pressure [bar] | Pe 22 bar |
Max. test pressure [psig] | 319 psig |
EAN | 5702428365482 |
Max. Working Pressure [bar] | 17 bar |
Max. Working Pressure [psig] | 245 psig |
Operat. range LP side [bar] Pe [Max] | 12 bar |
Operat. range LP side [bar] Pe [Min] | -1 bar |
Operat. range LP side [psig]Pe [Max] | 175 psig |
Operat. range LP side [psig]Pe [Min] | -15 psig |
Packing format | Multi pack |
Pressure connection size | 1/4 in |
Pressure connection standard | DIN 8906 |
Pressure connection type | Flare |
Pressure Male/Female | Male |
Product accessories | Generic accessories |
Product description Diff. | Pressure Switch |
Product family name | MP |
Product group | Switches and thermostats |
Product name | Differential pressure switch |
Quantity per packing format | 21 pc |
REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
Refrigerants | R11,R113,R12,R124,R134a
R22,R404A,R407A,R407C,R407F R407H,R422B,R422D,R438A,R448A R449A,R449B,R450A,R452AR507C,R513A,R515B |
Relay release time [s] | 90 " |
Reset function | Manual Min |
Serviceable | No |
Type | MP54 |
UL approved refrigerants | R11,R113,R12,R124,R134a,R22
R404A,R407A,R407C,R407F,R407H R422B,R422D,R438A,R448A,R449A R449B,R450A,R452A,R507C,R513A,R515B |
