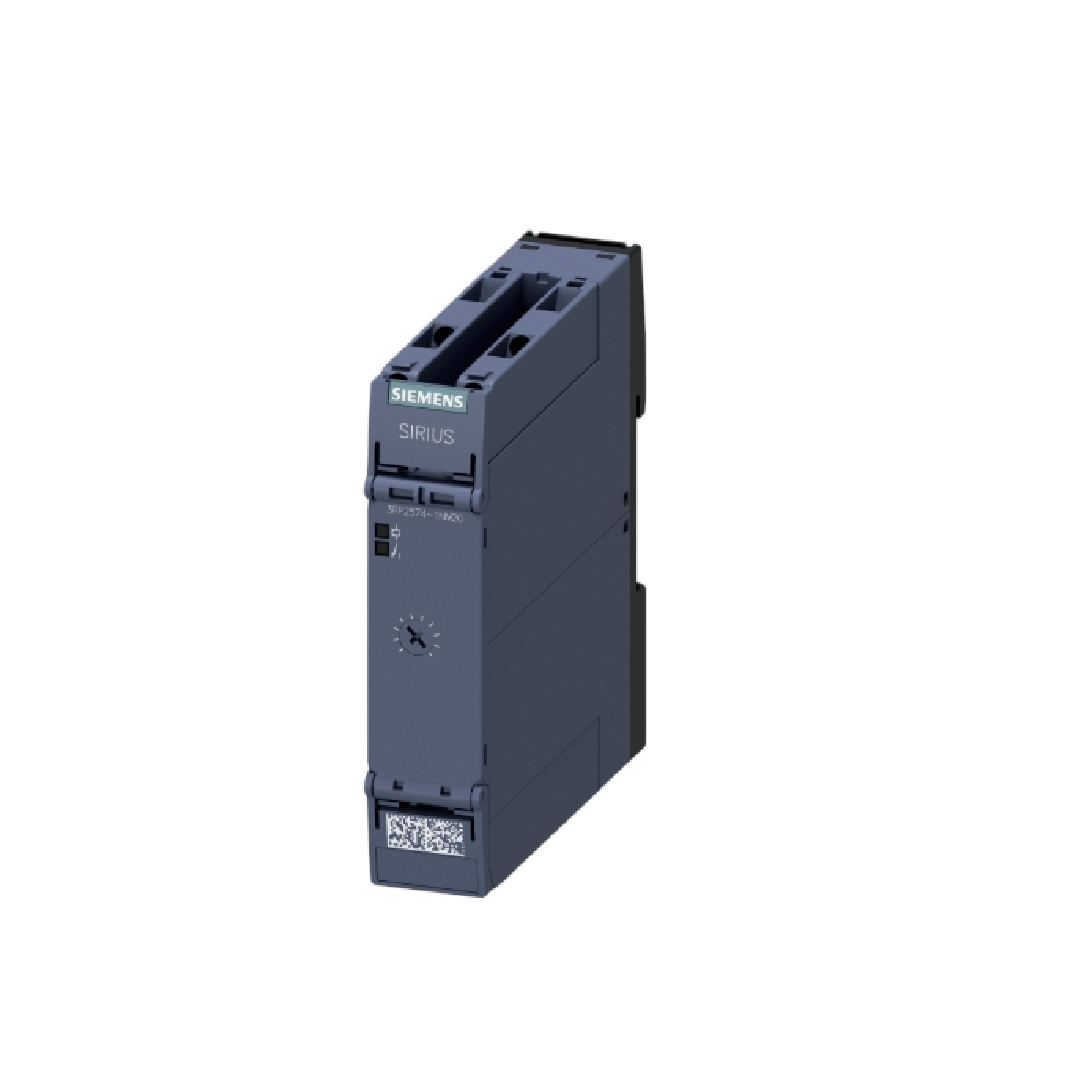

SIEMENS Timer Relay 3RP2505-2CW30

SIEMENS Timer Relay 3RP2505-2CW30

6,377.00 ฿
6,377.00 ฿
ลดราคา ขายหมดแล้ว

SIEMENS

รายละเอียด SIEMENS Timer Relay 3RP2505-2CW30

Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED, Spring-type terminal (push-in)
คุณสมบัติ Value
Supply Voltage 240V ac/dc
Mounting Type DIN Rail
Number of Contacts 1
Time Range 0.05 → 100h
Mode of Operation Multifunction
Number of Timer Functions Multi Function
Contact Configuration NO
Time Increment Seconds
Maximum Voltage 240V ac/dc
Maximum Current 1A
Series 3RP25
Terminal Type Push In
Power Supply External
Minimum Voltage 12V ac/dc
Width 17.5mm
Depth 91.6mm
Minimum Current 1A
Maximum Operating Temperature +60°C
Length 100mm
Switch Configuration NO
Time Delay 400ms
Minimum Operating Temperature -25°C
