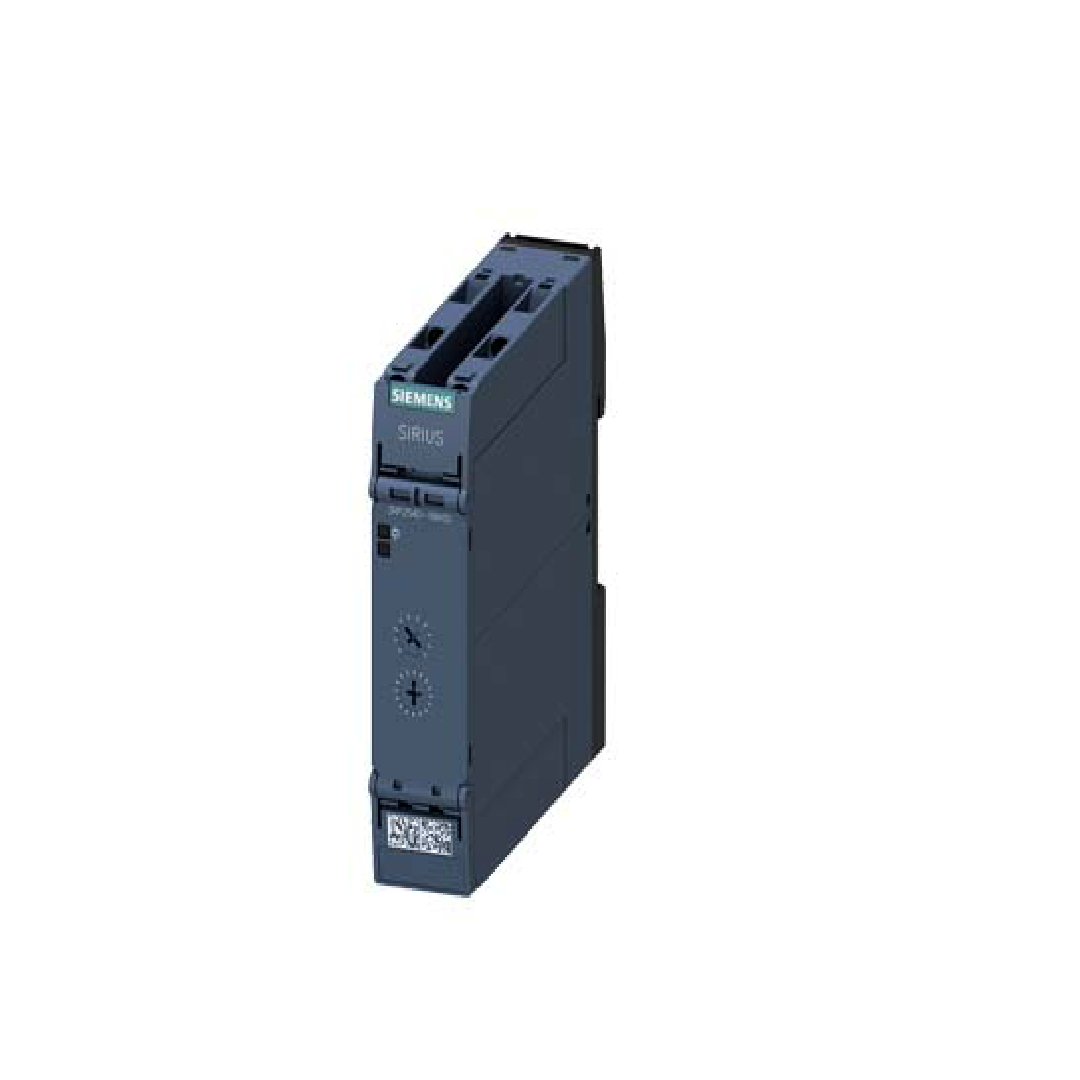

SIEMENS Timer Relay 3RP2576-2NW30

SIEMENS Timer Relay 3RP2576-2NW30

3,886.00 ฿
3,886.00 ฿
ลดราคา ขายหมดแล้ว

SIEMENS

รายละเอียด SIEMENS Timer Relay 3RP2576-2NW30

Siemens SIRIUS 3RP25 – Star Delta Timer Relay<ฝh3>
SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.

Star delta time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting
- Sealing cover for 17.5 mm time relays
- Sealing cover for 22.5 mm time relays

คุณสมบัติ Value
Supply Voltage 12 → 240V ac/dc
Mounting Type DIN Rail
Number of Contacts 2
Time Range 3 → 60s
Mode of Operation Star Delta
Number of Timer Functions Single
Contact Configuration DPNO
Time Increment Seconds
Maximum Voltage 240V ac/dc
Series 3RP25
Maximum Current 3A
Terminal Type Cage Clamp
Minimum Voltage 12V ac/dc
Length 90mm
Width 22.5mm
Maximum Operating Temperature +60°C
Depth 100mm
Switch Configuration DPST
Time Delay 250ms
Minimum Operating Temperature -25°C
Contact Material AgSnO2
