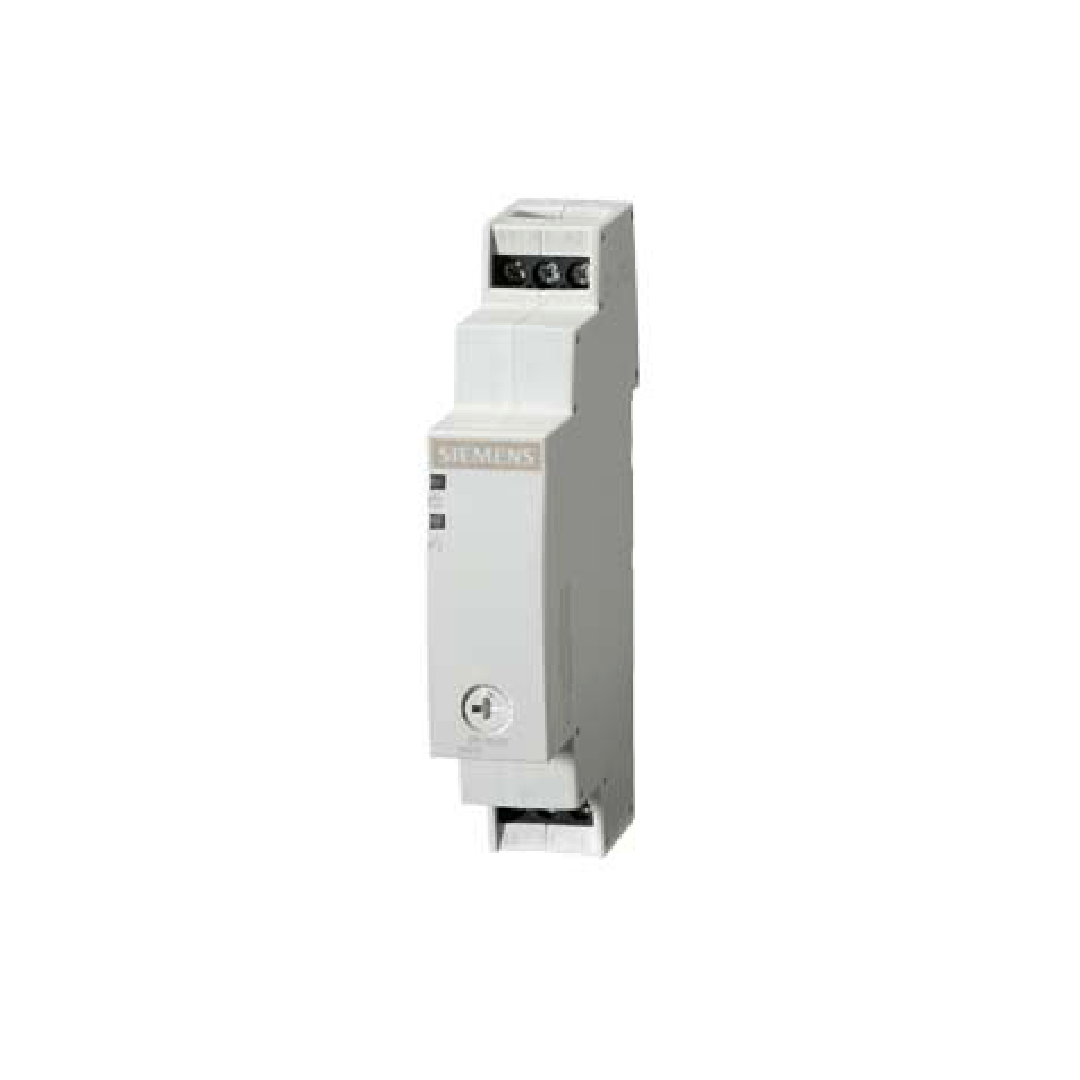

SIEMENS Timer Relay 7PV1513-1AQ30

SIEMENS Timer Relay 7PV1513-1AQ30

1,898.00 ฿
1,898.00 ฿
ลดราคา ขายหมดแล้ว

SIEMENS

รายละเอียด SIEMENS Timer Relay 7PV1513-1AQ30

Timing relay, electronic ON delay 1 change-over contact, 1 time range 5...100 s 24 V/110 V AC and 24 V DC with LED, Screw terminal
คุณสมบัติ Value
Supply Voltage 100 → 127V ac
Mounting Type DIN Rail
Number of Contacts 1
Time Range 5 → 100s
Mode of Operation ON Delay
Number of Timer Functions Single
Contact Configuration SPDT
Time Increment Seconds
Maximum Voltage 127V ac
Series 7PV15
Maximum Current 3A
Terminal Type Screw
Power Supply External
Minimum Voltage 100V ac
Length 66.7mm
Width 67mm
Maximum Operating Temperature +55°C
Minimum Current 0.1A
Switch Configuration SPDT
Depth 90.5mm
Minimum Operating Temperature -25°C
Time Delay 500ms
Contact Material AgSnO2
