• SIEMENS Timer Relay 7PV1518-1AN30
1 1

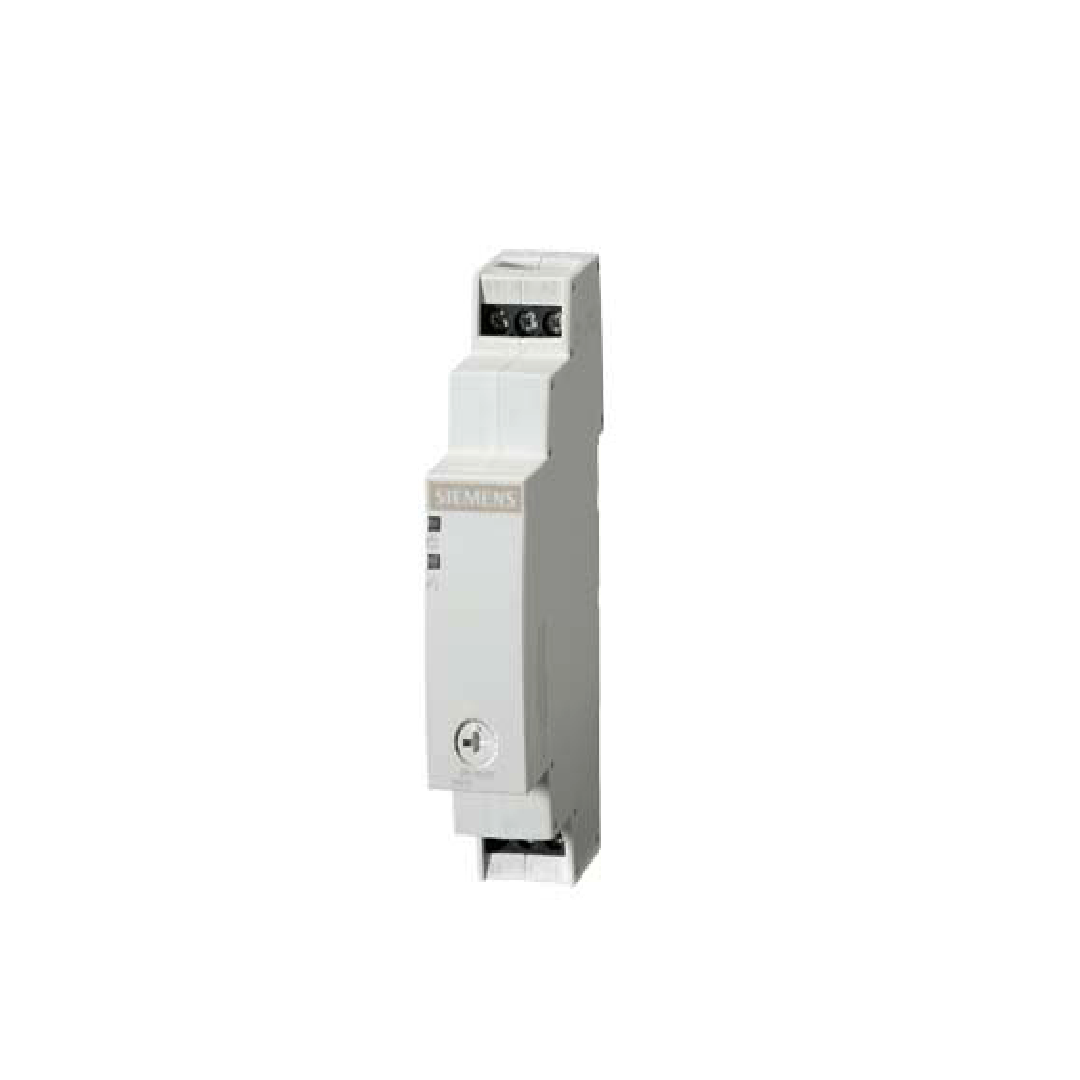

SIEMENS Timer Relay 7PV1518-1AN30

SIEMENS Timer Relay 7PV1518-1AN30

2,443.00 ฿
2,443.00 ฿
ลดราคา ขายหมดแล้ว

SIEMENS

รายละเอียด SIEMENS Timer Relay 7PV1518-1AN30

Timing relay, electronic ON delay 1 change-over contact, 7 time ranges 0.05 s...100 h 220 V AC/DC, 0.7...1.15 x US Screw terminal
คุณสมบัติ Value
Supply Voltage 180 → 240V ac/dc
Mounting Type DIN Rail
Number of Contacts 1
Time Range 0.05 → 360000s
Mode of Operation ON Delay
Number of Timer Functions Multi Function
Contact Configuration SPDT
Time Increment Seconds
Maximum Voltage 240V ac/dc
Maximum Current 3A
Terminal Type Screw
Power Supply External
Minimum Voltage 180V ac/dc
Length 17.5mm
Maximum Operating Temperature +55°C
Width 67mm
Switch Configuration SPDT
Depth 90.5mm
Minimum Current 0.1A
Minimum Operating Temperature -25°C
