| A | 22 mm |
| B | 27.5 mm |
| C | 19.8 mm |
| D | 64 mm |
| H | 20 mm mm |
Featurde
| Range | 0 - 12 " |
| Depth bar | flat |
| Thumb roller | Yes |
| Data output | Yes |
| Max. Permissible Error E MPE | ±0,0015" |
| Max. Permissible Error S MPE | ±0,0025" |
| Digital step | 0,0005"/0,01 mm |
| Max. response speed | Unlimited |
| Display | LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm) |
| Delivered | In a case, including 1 SR-44 battery |
| ORIGIN (ABS-Zero) | Yes |
| ON/OFF | Yes |
| ABS / INC (INC ZERO) | Yes |
| Low voltage alarm | Yes |
| Battery life | Approx. 5 years under normal use |
| Mass | 350 g |

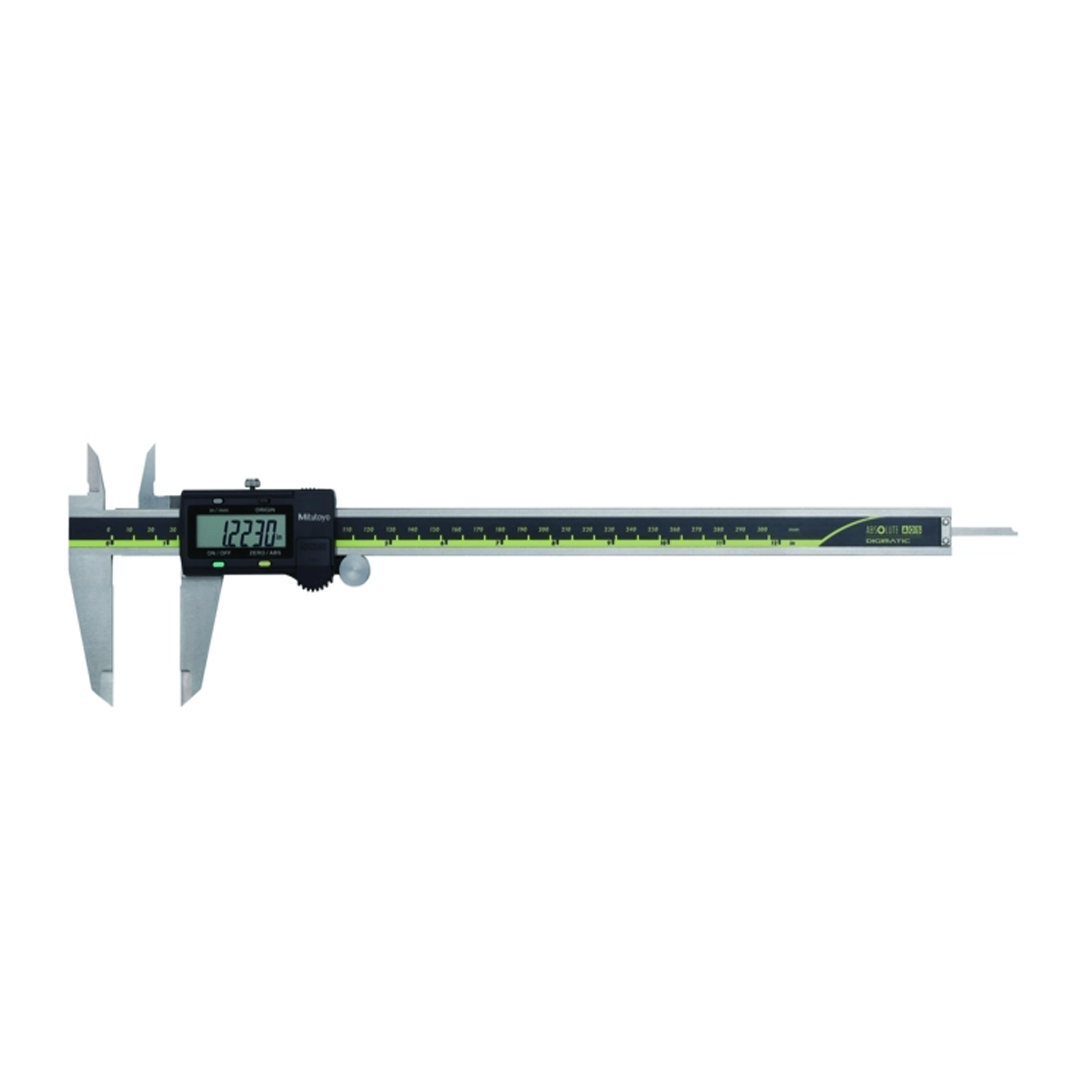

Description
- This digimatic caliper allows you to take reliable measurements and offers you the following benefits:
- AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
