L | 2250 mm |
c | 62.8 mm |
E | 113.8 mm |
Featurde
DATA (output with cable) / HOLD (display value) | Yes |
Max. Permissible Error E MPE | ±0,12 mm |
Max. response speed | Unlimited |
ORIGIN (ABS-Zero) | Yes |
OFFSET | 20 mm |
Auto Power OFF after 20 min. non use | Yes |
Low voltage alarm | Yes |
Data output | Yes |
Battery life | Approx. 5000 hours |
Mass | 2280 g |
Description

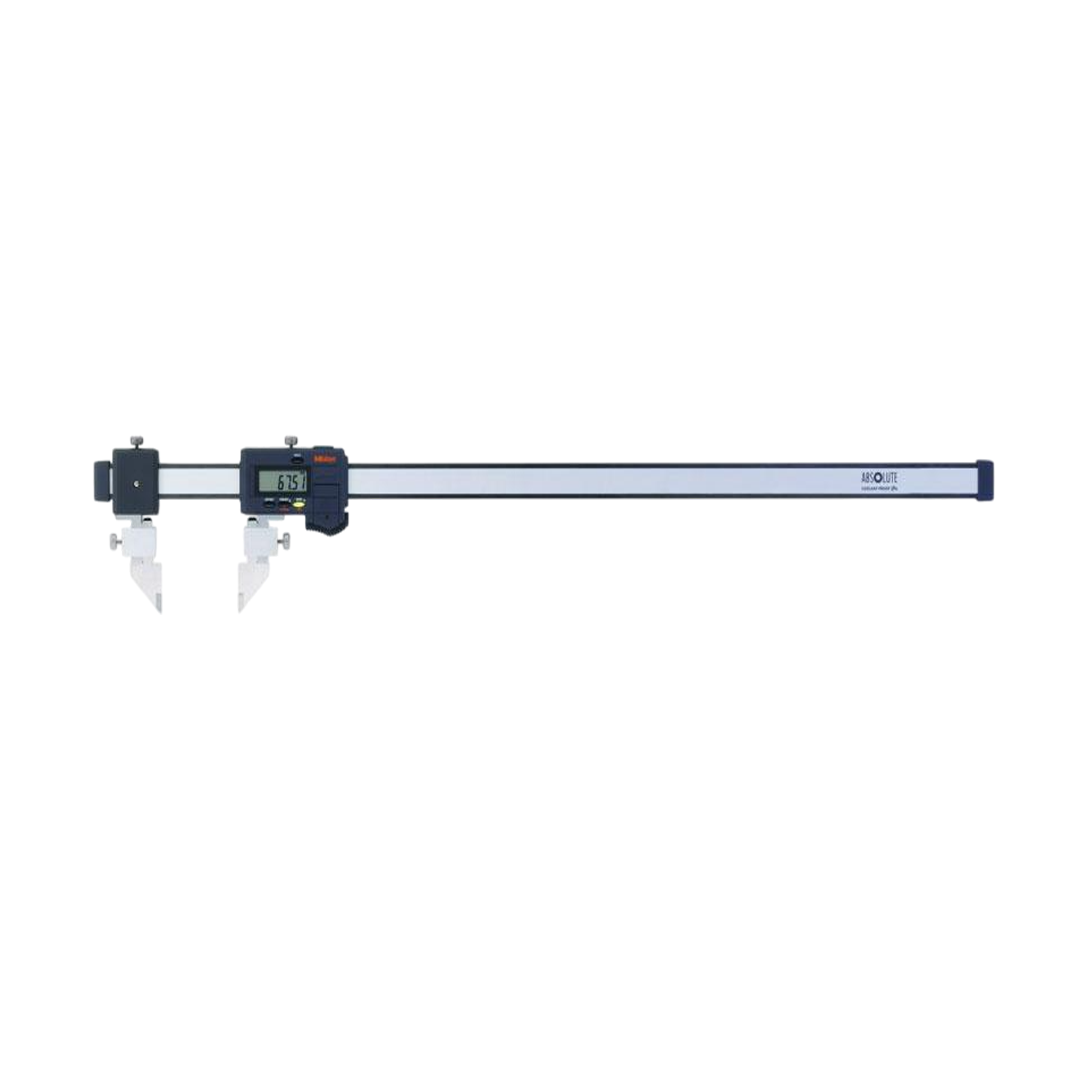

- This is a lightweight standard model of Digimatic caliper with optional interchangeable jaws. It offers you the following benefits:
- Its ultra-lightweight design (with carbon fibre reinforced material) reduces total weight by up to 50%.
- It has excellent resistance against water and dust (IP66 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
- Direct readout of inside measurements from the LCD (you can easily set the offset value by using the offset button).
- Preset function lets you set a desired starting point.
