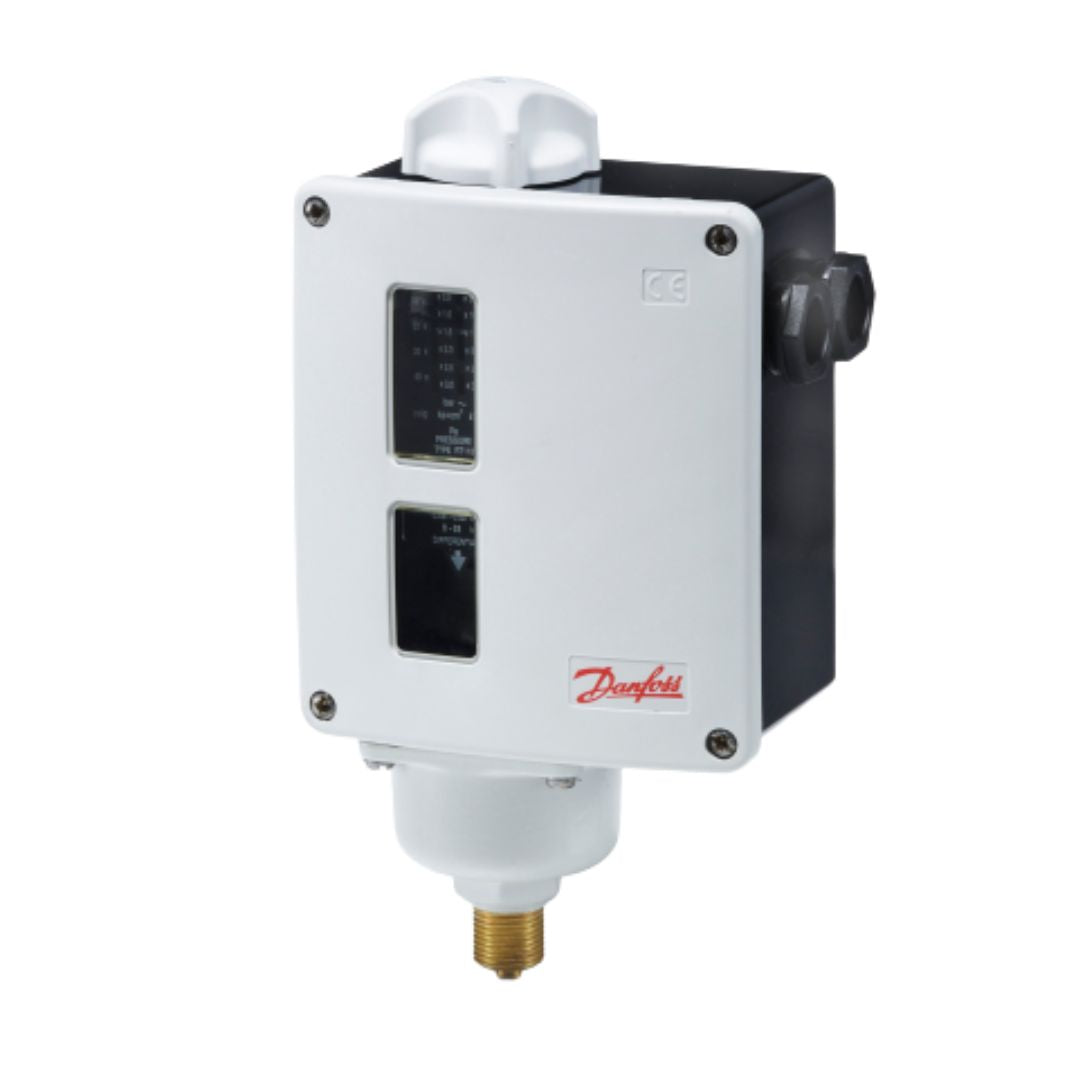

Product details
Gross weight | 0.98 kg |
Net weight | 0.88 kg |
Ambient temperature range [°C] [Max] | 70 °C |
Ambient temperature range [°C] [Min] | -50 °C |
Ambient temperature range [°F] [Max] | 158 °F |
Ambient temperature range [°F] [Min] | -58 °F |
Approval | BV,CCC,CE,DNV,EAC,GL,KR,LR, LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS,China TYSK,LLC, CDC, EURO-TYSK,UKCA |
EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
Differential [bar] [Max] | 1.2 bar |
Differential [bar] [Min] | 0.25 bar |
Differential [psi] [Max] | 17.4 psi |
Differential [psi] [Min] | 3.6 psi |
Differential [psi] [Min] | 3.6 psi |
Electrical conn. Male/Female | Female |
Electrical connection | Screwed cable entry |
Electrical connection size | 2xPg 13.5 |
Electrical connection standard | DIN 40430 |
Electrical spec. standard | 60947-4/-5 |
EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
Enclosure rating IP | IP66 |
Identical product | 017-523766 |
Max. test pressure [bar] | Pe 25 bar |
Max. test pressure [psig] | 363 psig |
Max. Working Pressure [bar] | 22 bar |
EAN | 5702423118601 |
Packing format | Industrial pack |
Pressure connection size | 3/8 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |
Product description | Pressure Switch |
Product family name | RT Pressure switch |
Product group | Switches and thermostats |
Product name | Pressure switch |
Quantity per packing format | 12 pc |
REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
Refrigerants | R11,R113,R12,R124,R134a R22,R404A,R407A,R407C,R407F R407H,R422B,R422D,R438A,R507C |
Regulation range [bar] Pe [Max] | 6 bar |
Regulation range [bar] Pe [Min] | 0.2 bar |
Regulation range [psig] Pe [Max] | 87 psig |
Regulation range [psig] Pe [Min] | 2.9 psig |
Reset function | Auto |
Serviceable | Contact systems |
Type | RT200 |
UL approved refrigerants | R11,R113,R12,R124,R134a,R22 R404A,R407A,R407C,R407F R407H,R422B,R422D,R438A,R507C |
