Product details
Gross weight | 0.34 kg |
Net weight | 0.31 kg |
Amb. Temp. Note | 80 °C/176 °F for max 120 min |
Ambient temperature range [°C] [Max] | 65 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 149 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | BV,CCC,CE,CMIM,DNV,EAC
GL,LLC CDC EURO-TYSK LR,LVD,PED,PZH,RINA RMRS,RoHS,China,UKCA c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
Contact function | SPDT |
Contact rating | AC15=10 A, 400 V
AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
Differential [bar] [Max] | 6 bar |
Differential [bar] [Min] | 1.8 bar |
Differential [psi] [Max] | 87 psi |
Differential [psi] [Min] | 26 psi |
EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV |
EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
Enclosure rating IP | IP44 |
Enclosure rating Nema (~) | 2 |
Further information | Not applicable for liquid line |
Lubricants compatibility | Oilfree applications |
Max. test pressure [bar] | Pe 35 bar |
Max. test pressure [psig] | 510 psig |
Max. Working Pressure [bar] | 35 bar |
Max. Working Pressure [psig] | 510 psig |
Oil free refrigerants | R134a
R513A R515B |
EAN | 5702422025931 |
Packing format | Multi pack |
Pressure connection size | 1/4 |
Pressure connection standard | DIN 8906 |
Pressure connection type | Flare |
Pressure Male/Female | Male |
Pressure range category | Low pressure |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |

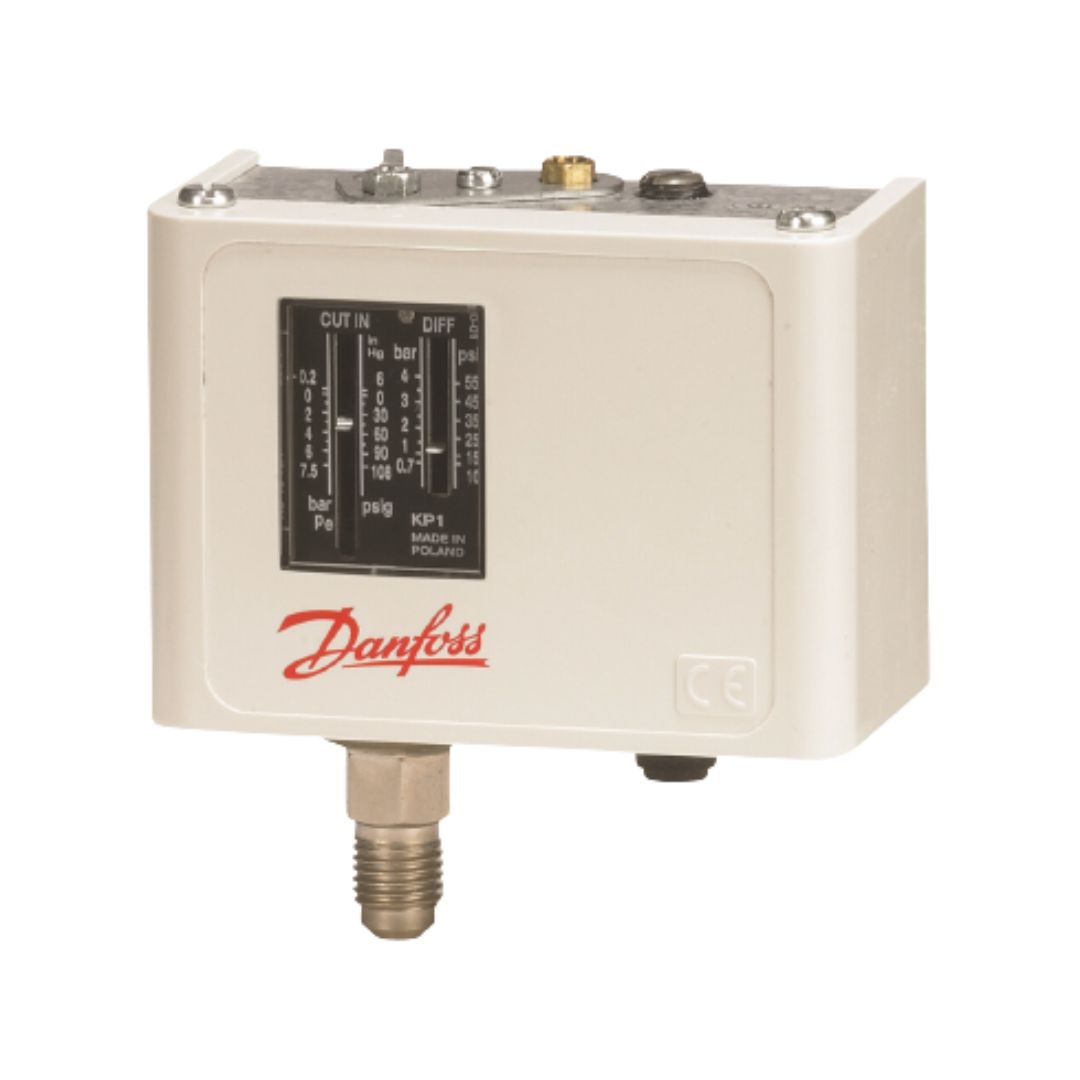

Product description | Pressure Switch |
Product family name | KP Pressure switch |
Product group | Switches and thermostats |
Product name | Pressure switch |
Quantity per packing format | 36 pc |
REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
Refrigerant oil compatibility Oilfree applications | R134a
R513A R515B |
Refrigerants | R113,R1234yf,R1234yz,R1234ze,R124
R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R438A R448A,R449A,R449B,R450A,R452A R454C,R455A,R507A,R513A,R515B |
Regulation range [bar] Pe [Max] | 32 bar |
Regulation range [bar] Pe [Min] | 8 bar |
Regulation range [bar] Pe [Max] | 464 psig |
Regulation range [bar] Pe [Min] | 116 psig |
Reset function | Auto |
Serviceable | No |
Type | KP5 |
UL approval file name | E31024 |
UL approved refrigerants | R113,R124,R134a,R22,R404A
R407A,R407C,R407F,R407H R422B,R422D,R438A,R448A R449A,R449B,R450A,R452A R507A,R513A,R515B |
