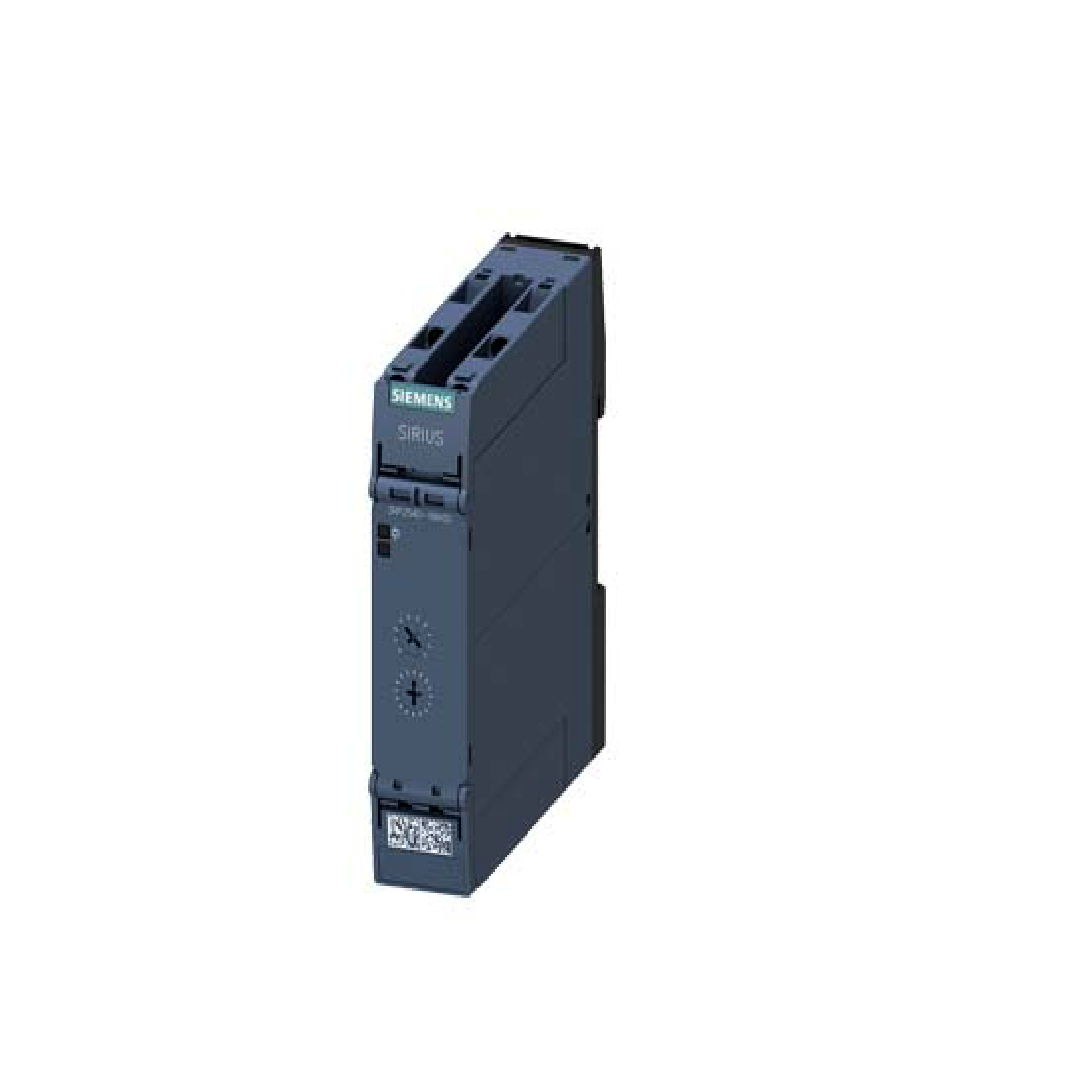

SIEMENS Timer Relay 3RP1525-1BP30
SIEMENS Timer Relay 3RP1525-1BP30
ราคาปกติ
5,288.00 ฿
ราคาปกติ
ราคาโปรโมชัน
5,288.00 ฿
ราคาต่อหน่วย
/
ต่อ
SIEMENS
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด SIEMENS Timer Relay 3RP1525-1BP30
Siemens SIRIUS 3RP15 - On-Delay Timer Relay<ฝh3>ON-Delay timing relays SIRIUS 3RP15 are used in control, starting, and protective circuits for all switching operations involving time delays. They guarantee a high level of functionality and a high repeat accuracy of timer settings.
ON-Delay Function
LED for indicating timing relay on voltage
LED for indicating relay switched
Time setting range selector switch
22.5mm wide housing and compact design
DIN rail mounting
ON-Delay timing relays SIRIUS 3RP15 are used in control, starting, and protective circuits for all switching operations involving time delays. They guarantee a high level of functionality and a high repeat accuracy of timer settings.
ON-Delay Function
LED for indicating timing relay on voltage
LED for indicating relay switched
Time setting range selector switch
22.5mm wide housing and compact design
DIN rail mounting
LED for indicating timing relay on voltage
LED for indicating relay switched
Time setting range selector switch
22.5mm wide housing and compact design
DIN rail mounting
| คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 24 V ac/dc, 200 → 240V ac |
| Mounting Type | DIN Rail |
| Number of Contacts | 2 |
| Time Range | 0.05 → 1min |
| Mode of Operation | ON Delay |
| Number of Timer Functions | Single |
| Contact Configuration | DPDT |
| Time Increment | Minutes |
| Maximum Voltage | 250 V dc, 400V ac |
| Maximum Current | (dc) 1 A, (ac) 3A |
| Terminal Type | Screw |
| Power Supply | External |
| Minimum Voltage | 24V ac/dc |
| Depth | 90mm |
| Length | 83mm |
| Width | 22.5mm |
| Minimum Current | (dc) 0.1A |
| Switch Configuration | DPDT |
