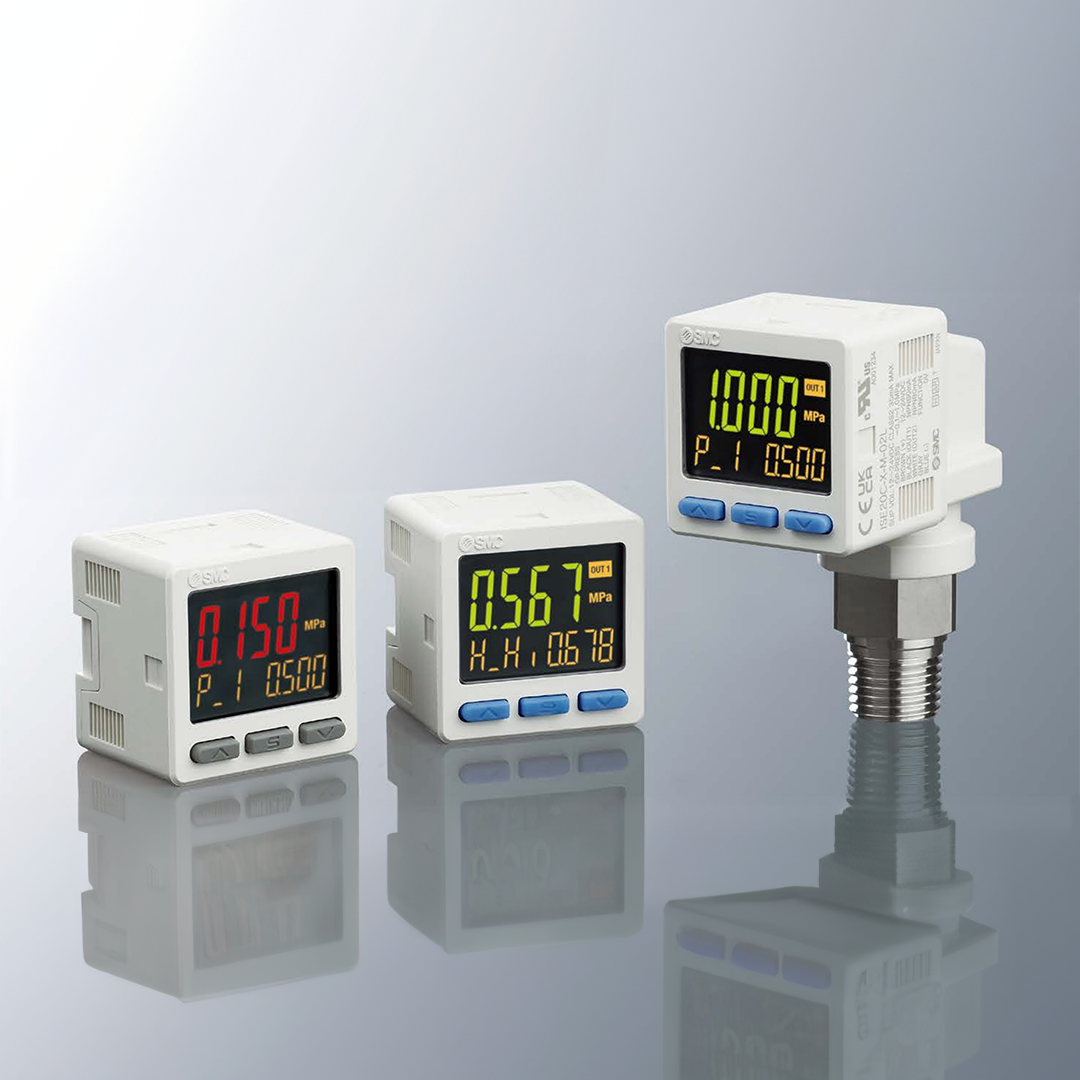

ISE30A-01-A SMC Pressure Switch สวิตช์ความดัน
ISE30A-01-A SMC Pressure Switch สวิตช์ความดัน
ราคาปกติ
3,189.58 ฿
ราคาปกติ
ราคาโปรโมชัน
3,189.58 ฿
ราคาต่อหน่วย
ต่อ
SMC
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด ISE30A-01-A SMC Pressure Switch สวิตช์ความดัน
Series Catalog :
Mechanical data
| SMC Part Description | SWITCH |
| SMC Products Line | INSTRUMENTATION |
| SMC Family | ISE30/ISE30A PRESSURE SWITCH |
| SMC Family Code | CA |
| SMC Class Description | ISE30 1/8 INCH PT VERSION |
| Weight | 23005 lb |
Specifications
| Model | ZSE30A (Vacuum pressure) |
ZSE30AF (Compound pressure) |
ISE30A (Positive pressure) |
||
|---|---|---|---|---|---|
| Rated pressure range | 0.0 to –101.0 kPa | –100.0 to 100.0 kPa | –0.100 to 1.000 MPa | ||
| Set pressure range | 10.0 to –105.0 kPa | –105.0 to 105.0 kPa | –0.105 to 1.050 MPa | ||
| Withstand pressure | 500 kPa | 500 kPa | 1.5 MPa | ||
| Minimum unit setting | 0.1 kPa | 0.1 kPa | 0.001 MPa | ||
| Applicable fluid | Air, Non-corrosive gas, Non-flammable gas | ||||
| Power supply voltage | 12 to 24 VDC ±10%, Ripple (p-p) 10% or less (with power supply polarity protection) | ||||
| Current consumption | 40 mA or less | ||||
| Switch output | NPN or PNP open collector 1 output, NPN or PNP open collector 2 outputs (selectable) | ||||
| Maximum load current | 80 mA | ||||
| Maximum applied voltage | 28 V (at NPN output) | ||||
| Residual voltage | 1 V or less (with load current of 80 mA) | ||||
| Response time | 2.5 ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms) | ||||
| Short circuit protection | Yes | ||||
| Repeatability | ±0.2% F.S. ±1 digit | ||||
| Hysteresis | Hysteresis mode | Variable (0 or above) Note 1) | |||
| Window comparator mode | |||||
| Analog output | Voltage output | Output voltage (Rated pressure range) | 1 to 5V ±2.5% F.S. | ||
| Linearity | ±1% F.S. or less | ||||
| Output impedance | Approx. 1 kΩ | ||||
| Current output | Output current (Rated pressure range) | 4 to 20 mA ±2.5% F.S. | |||
| Linearity | ±1% F.S. or less | ||||
| Load impedance | Maximum load impedance: Power supply voltage 12 V: 300 Ω, Power supply voltage 24 V: 600 Ω Minimum load impedance: 50 Ω |
||||
| Display | 4-digit, 7-segment, 2-color LCD (Red/Green) | ||||
| Display accuracy | ±2% F.S. ±1 digit (Ambient temperature of 25 ±3°C) | ||||
| Indicator light | Lights up when switch output is turned ON. OUT1: Green, OUT2: Red | ||||
| Environment resistance | Enclosure | IP40 | |||
| Operating temperature range | Operating: 0 to 50°C, Stored: –10 to 60°C (No freezing or condensation) | ||||
| Operating humidity range | Operating/Stored: 35 to 85% RH (No condensation) | ||||
| Withstand voltage | 1000 VAC for 1 minute between live parts and case | ||||
| Insulation resistance | 50 MΩ or more between live parts and case (at 500 VDC Mega) | ||||
| Vibration resistance | 10 to 150 Hz at whichever is smaller of 1.5 mm amplitude or 20 m/s2 acceleration, in X, Y, Z directions, for 2 hours each (Non-energized) | ||||
| Impact resistance | 100 m/s2 in X, Y, Z directions, 3 times each (Non-energized) | ||||
| Temperature characteristics | ±2% F.S. (Based on 25°C) | ||||
| Lead wire | Oilproof heavy-duty vinyl cable, 3 cores ø3.5, 2 m / 4 cores Conductor area: 0.15 mm2 (AWG26), Insulator O.D.: 1.0 mm |
||||
| Standards | CE Marking, UL/CSA, RoHS compliance | ||||
